The pressing and drying of wet garments is carried out by pressing with hot plates and blowing of overheated air.

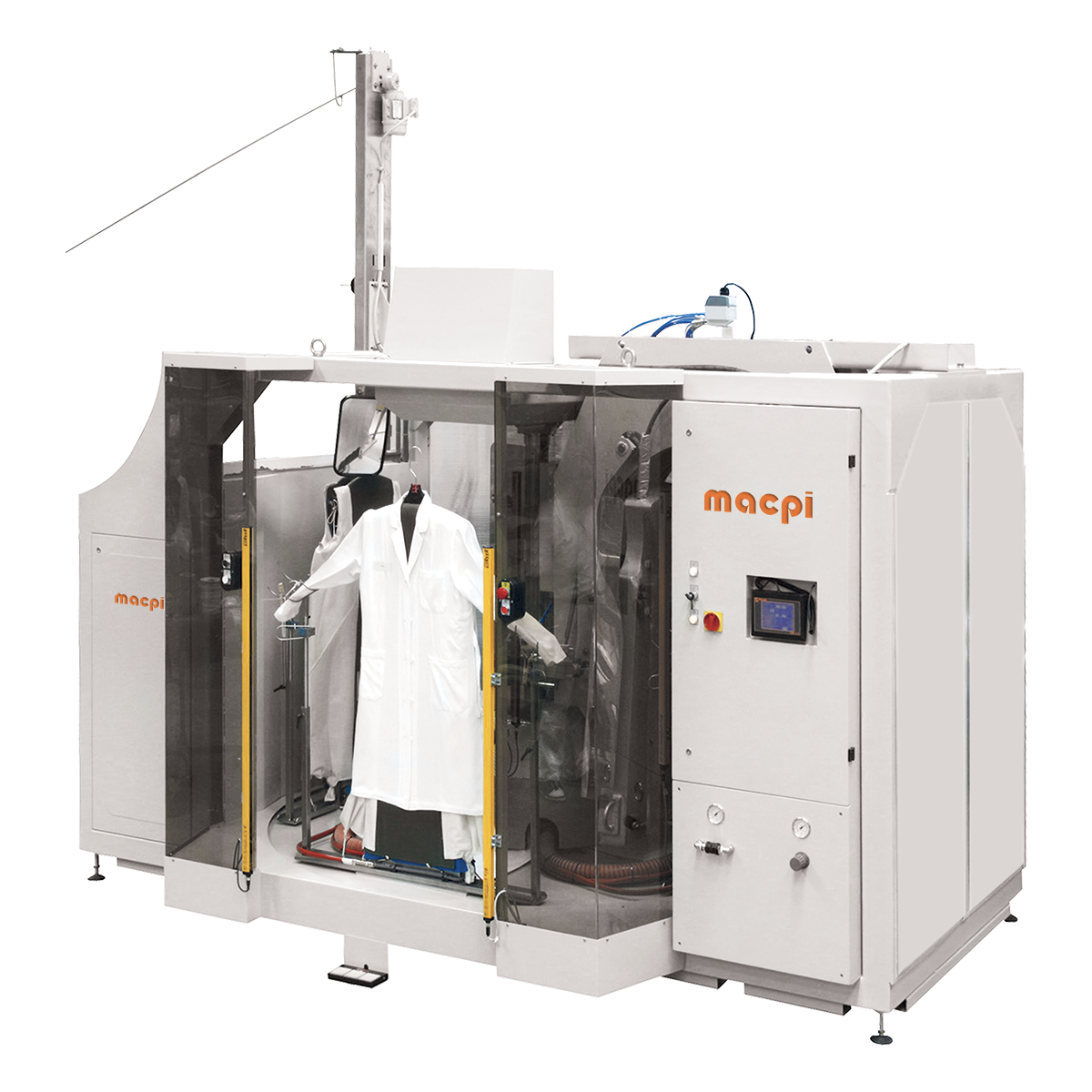

The automatic unit is equipped with 4 dummies installed on a rotating board, with a loading station and an automatic unloading station.
The automatic unit has the following 4 working stations:
a. loading station with vacuum
b. garment pressing station with polished plates and expanders for the inflation on the sides, separately for a short or long garment
c. body and sleeve drying station with hot air
d. automatic station for the garments unloading from the unit to the conveyor
The automatic station is featuring the following characteristics and is complete with:
* steam heating of the pressing plate and of the heat exchanger (max. 12 bar)
* kneepad for: vacuum starting, dummies rise and descent, rotation reservation
* movable clamps group
* double security barrier for rotation and pressing
* push-button for cycle start/stop /emergency/reset
* pressing pressure adjustment
* built-in vacuum of 5,5 Hp KW 4
* 2 centrifugal fans of HP3 2,2 Kw/each
* heat exchanger for heating blowing air
* bellows for pressing cylinders
* nebulizer spraying device
* front legs support
* delayed time for automatic unloading start
* lamp connection plug
* programming by Touch Screen 7″ terminal for the setting-up of:
* pressing time
* time and pressure of lower and upper inflatable bags
* blowing time of central hot air
