Technical Specifications

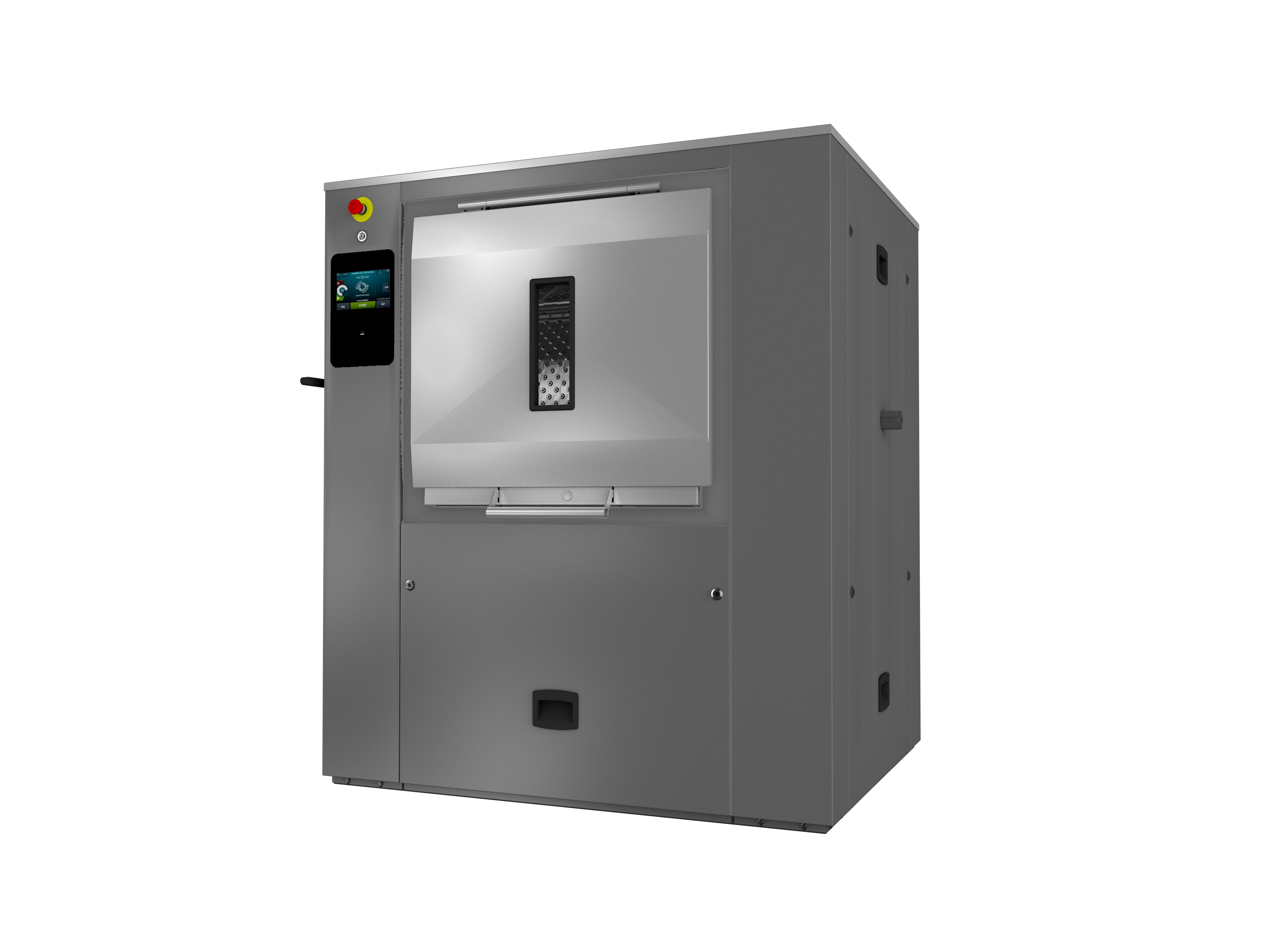

TOLON Barrier Washers

TBW 16-22-27-35-50-70

Drum volume:

158 l – 220 l – 266 l – 347 l – 489 l – 694 l

Motor:2,2 kW – 2,2 kW – 4 kW – 4 kW – 5,5 kW – 7,5 kW

Dry Load:16 kg – 22 kg – 27 kg – 35 kg – 49 kg – 70 kg

Electric heating power:12 kW – 18 kW – 18 kW – 27 kW – 36 kW – 45 kW

Heating:Electric, Steam or Dual

G-force:350 – 375 G

Control System:Programmable control, touch screen

Weight:438 kg – 471 kg – 886 kg – 926 kg – 1063 kg – 1190 kg

Dimensions (WxDxH):

984 x 914 x 1398 mm

1184 x 914 x 1398 mm

1201 x 1098 x 1580 mm

1359 x 1098 x 1580 mm

1654 x 1098 x 1580 mm

2061 x 1098 x 1580 mm

Standard Features and Benefits

• Barrier washers
• 2 opposed doors for loading and unloading. Door locks with safety opening.
• G-force 350 for TBW 16 and TBW22 and G-force 375 for TBW27, TBW35, TBW50 and TBW70
• Grey skin plate outer casing
• Stainless steel AISI304 drum and tub
• Electric, steam, or dual heating
• CE approval
• Motor brake for automatic drum positioning
• 8 programmable signals for automatic liquid dosing
• 7” touch screen control with 37 languages
• Imbalance inverter for elongating the components’ lifetime and reducing washing times
• Standard 2 water inlets
• All barrier washers incorporate the necessary features for WETCLEANING
