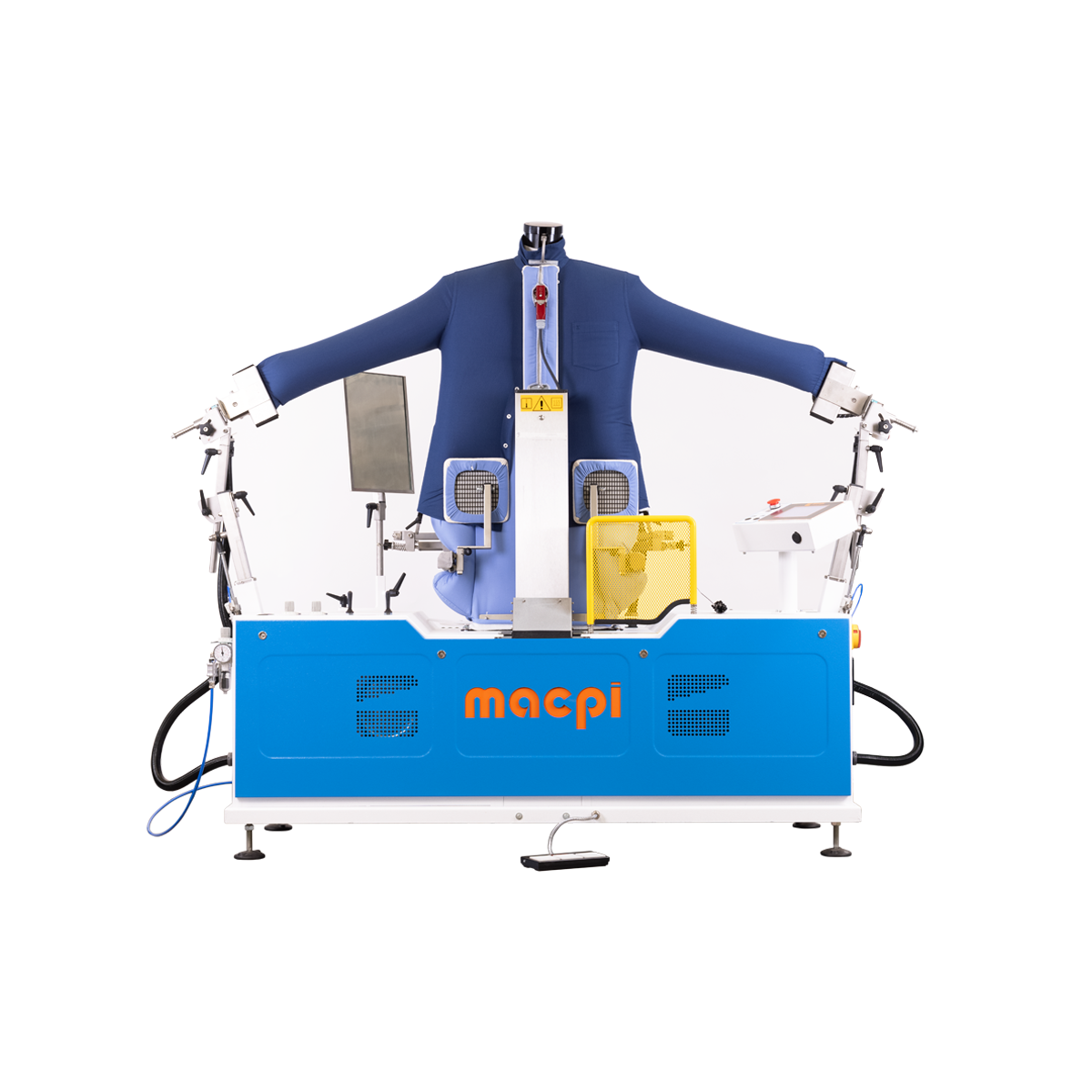

Electropneumatic dummy for the simultaneous ironing of shirts body, shoulders and sleeves.
The dummy is featuring the followig characteristics and is complete with:
* blowing and vacuum unisex dummy with collar locking
* electrically heated front paddle for shirt front placket locking and ironing
* pneumatic devices for side adjustment, front and rear blocking of bottom shirts and shirt tension
* turning and retractable front paddle to facilitate the loading and unloading operations
* clamps with photocell closure and sleeve tensioning with mechanical limit switch
* built-in electric fan of 2,25Kw
* cold air blowing
* heated air blowing adjustment by inverter
* built-in vacuum fan of 0,56 kw
* adjustable ironing pressure for front paddle, for sides adjustment devices for shirt traction
* Touch Screen programmer TC7″
* adaption for use of dummy of different sizes:
* man 8577
* woman 8575
* child 8574
* steam heating system
* steam consumption 30/40 Kg/h
